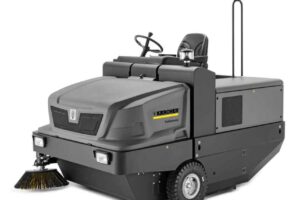

KM 150/500 R LPG

LPG-powered KM 150/500 R Lpg industrial sweeper for indoor and outdoor use is suitable for extreme jobs, e.g. in the building material and metal-working industries or foundries and in all other dirt-intensive sectors. Thanks to the dustpan principle, fine sweepings and coarse dirt are reliably vacuumed. The roller brush automatically adjusts to uneven surfaces and the innovative sweeping system reduces wear and tear to a minimum. The main roller brush can be easily changed without tools. The waste container automatically closes during transport. Two horizontally installed flat pleated filters ensure clean air under heavy dust conditions. Filter cleaning can be done with the push of a button using a highly effective dual scraper. The filter is optimally accessible and can be easily changed without the need for tools. The motor is also easy to access. The basicfunctions can be conveniently selected with a control thanks to the EASY Operation Concept. A cyclone filter cleans the air before it enters the motor and increases the service life considerably.

Features

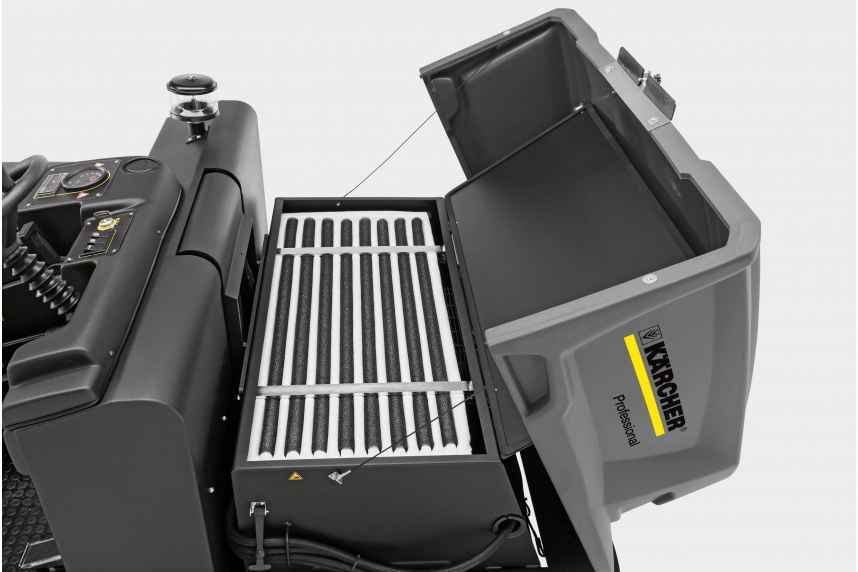

  • Flat pleated filter with 7 m² filter area. Effective cleaning with dual scraper. For dust-free sweeping.

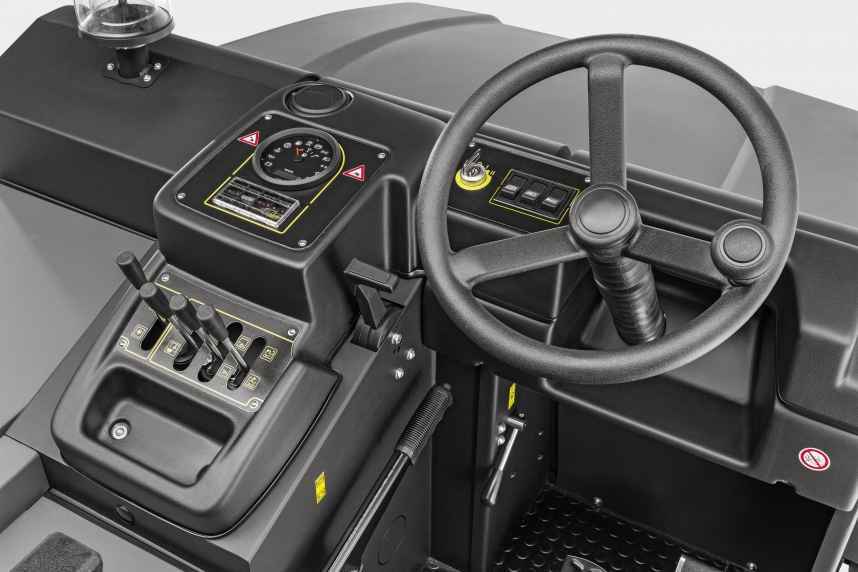

  • All control elements are clearly arranged and easy to access. All displays in full view. Optional: cabs with heating or air conditioning.
  • Simple technology with tried and tested components: fully hydraulic drive, electric instead of electronic. Easy motor access for quick and simple maintenance. Main sweeper roller and flat pleated filter can be replaced without tools.
  • Good intake of fine and coarse waste.
  • Low CO2 emissions.
  • Indoor and outdoor use.

Specifications

Drive 4-stroke LPG engine / Kubota
Drive power (kW) 22
Max. area performance (m²/h) 18000
Working width (mm) 1200
Working width with 1 side brush (mm) 1500
Working width with 2 side brushes (mm) 1800
Container (l) 500
Climbing capacity (%) 18
Working speed (km/h) 12
Filter area (m²) 7
Weight (kg) 1415
Dimensions (L x W x H) (mm) 2442 x 1570 x 1640
