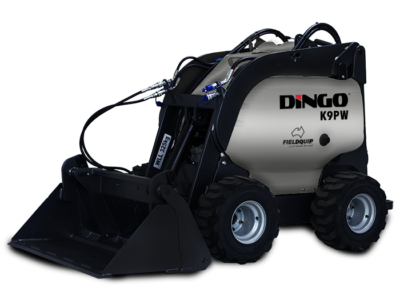

K9PW
The Dingo Mini Loader – K9PW, meticulously designed and manufactured by Dingo Australia, features a cutting-edge EFI petrol engine, ensuring it’s the go-to choice for worksites, owner-operators, and DIY enthusiasts.
WHAT YOU GET
- 23HP Petrol, Wheel Mini Loader
- All wheel drive
- 325kg Lift capacity
- 1,840mm lift
- The ORIGINAL iconic DiNGO Mini Loader
- Designed and manufactured in Australia
STANDARD FEATURES
|
| All wheel drive system |
| High Flow Auxiliary Hydraulics |
| Grease free |
| 180° access |
| Soft touch controls |
| 1,840mm lift |
| Rupture resistant fuel tank |
| Dingo Warranty |
5 years/5000hrs |
Specifications
| PERFORMANCE |
|
| Engine |
23 HP Kohler Petrol |
| Hydraulic pumps |
2 pumps |
| Pump sizes |
11 & 4 cc |
| Relief pressure (AUX) |
3,200 psi (220 bar) |
| Hydraulic output |
47 L/m |
| Max travel speed |
7.5 km / h |
| Rated lift capacity |
325 kg |
| DIMENSIONS |
|
| Overall width |
780 mm & 1,040 mm |
| Overall length |
1,600 mm |
| Overall height |
1,200 mm |
| Max operating height 4 in 1 |
2,680 mm |
| Turning radius with 4 in 1 bucket |
1,300 mm |
| Angle of departure |
25° |
| Wheel base |
800 mm |
| Ground clearance |
140 mm |
| Dump height standard bucket |
1,450 mm |
| Dump height 4 in 1 bucket |
1,835 mm |
| Reach fully raised 4 in 1 bucket |
800 mm |
| Height to hinge pin |
1,940 mm |
| Machine width 4 in 1 bucket |
1,050 mm & 1,200 mm |
| Hydraulic reservoir capacity |
76 L |
| Machine mass |
862 kg |
