909E CR

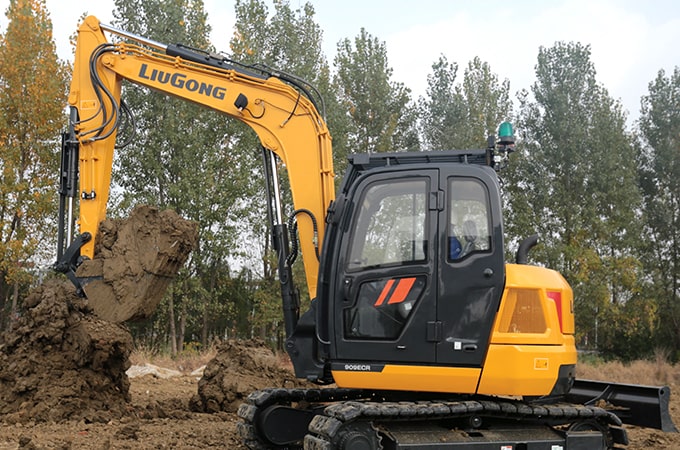

With its short, multifunctional tail swing and easy and safe operation, the 909E CR excavator perfectly suits job sites with confined spaces.

Operating Weight: 8,700 kg

Advanced hydraulic system is perfectly matched to the engine and components for fast response and smooth operation. The hydraulic system provides a load sensing and flow sharing capability leading to operational precision, efficient performance and greater controllability.
Ergonomically designed controls, clear visibility and convenient features all contribute to operator comfort and overall productivity on the job site. Easy engine access for service. Air, fuel and hydraulic filters are accessible from ground level.
Short tail swing design for improved access. On this model, if you are working in a confined space the short tail swing ensures safe and easy operation within a confined space.
The fuel efficient, Stage V / Tier 4F certified Yanmar 4TNV98C-SLY engine provides proven and reliable power.

SPECIFICATIONS

Operating weight: 8700 kg

Emission rating : Stage V / Tier 4F

Engine manufacturer : Yanmar

Engine model : 4TNV98C-SLY

Displacement : 3.3 L (202 gal)

Rated speed : 2,200 rpm

Engine output – net : 44 kW (59 hp )

Engine output – gross : 46.2kW(62 hp / 63ps)

Maximum torque : 241 Nm

Type : Variable displacement piston pump

Maximum flow : 196 L/min (51.8 gal/min)

Fuel tank : 116 L (30.6 gal)

Engine oil : 11.6 L (3.1 gal)

Final drive (each) : 1.08 L (0.29 gal)

Shoe width : 450 mm (18”)

Boom : 3,375 mm (11’1”)

Arm : 1,650 mm (5’5”)

Bucket : 0.28 m. (0.37 yd3)

Counterweight : 1400 kg (3,086 lb)

Ground pressure : 38.7 kPa (5.6 lb)
