F7030M / F7035M

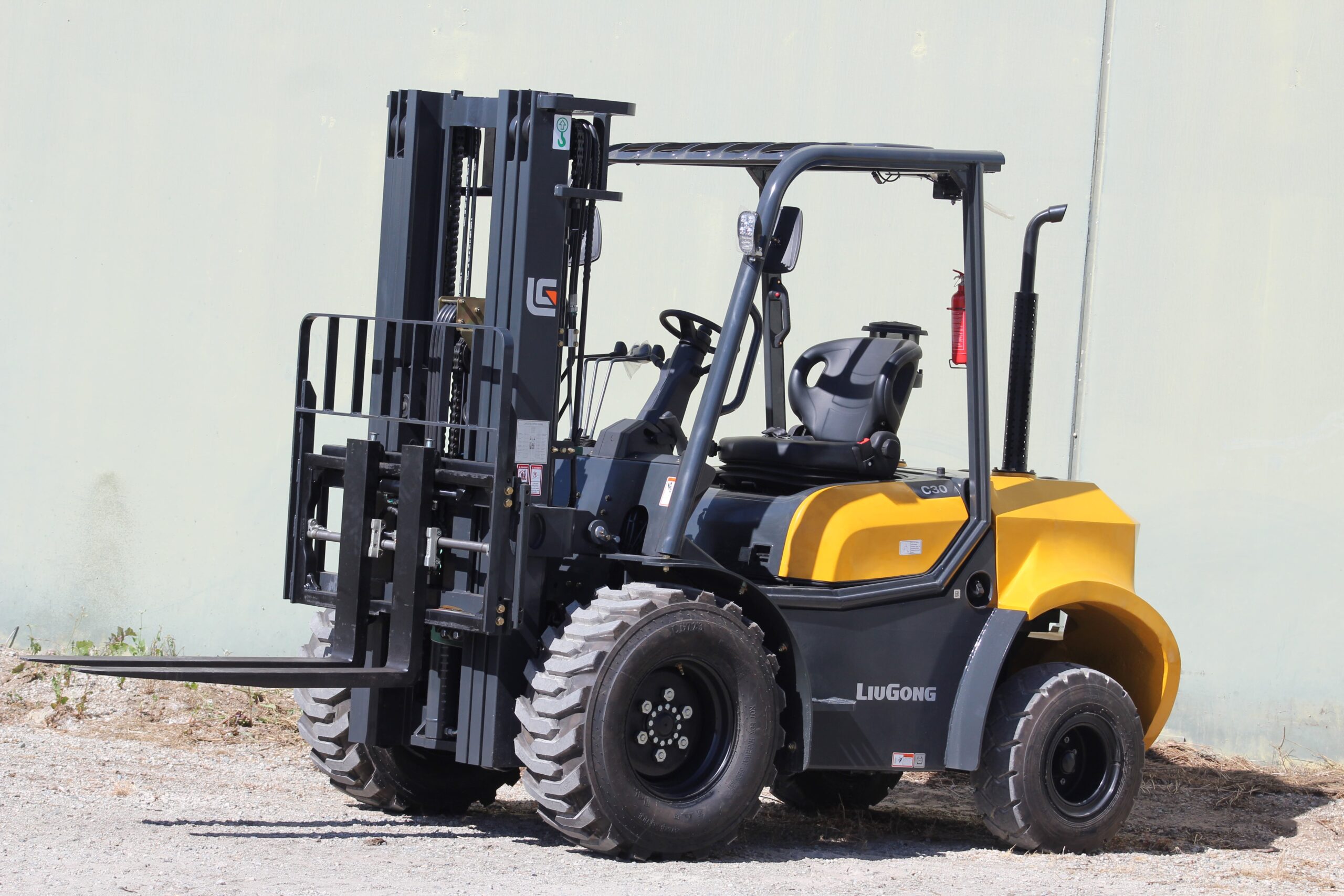

LiuGong 3.0–3.5T Rough Terrain Forklift – F7030M & F7035M
The LiuGong 3.0–3.5T rough terrain forklift range delivers unmatched power and traction for outdoor lifting.
The LiuGong 3.0–3.5 tonne LiuGong forklift is a tough, compact, two-wheel drive machine built for demanding environments. Engineered for performance, it delivers excellent manoeuvrability, stability, efficiency, and long-term reliability – making it ideal for rugged terrain applications.
- High ground clearance and a large departure angle enhance manoeuvrability and keep the machine moving through the roughest conditions.
- The differential features an automatic locking function, delivering superior traction on challenging surfaces and in bad weather.
- Drive axles are equipped with wide-base, deep-tread tyres for improved off-road performance.
- The oscillating steer axle allows each wheel to move independently over obstacles, helping maintain load stability.
- The full hydraulic steering system ensures smooth, light, and precise control.
| Specification | F7030M | F7035M |
|---|---|---|
| Engine | Diesel Yanmar 4TNE98 | Diesel Yanmar 4TNE98 |
| Base Capacity @ Rated Load Centre | 3,000 kg | 3,500 kg |
| Load Centre | 500 mm | 500 mm |
| Service Weight | 5,150 kg | 5,400 kg |
| Max Fork Height | 3,000 mm | 3,000 mm |
| Drive | 2WD | 2WD |
| Overall Width | 1,600 mm | 1,600 mm |
| Ground Clearance | 265 mm | 265 mm |
| Travel Speed | 22 km/h | 22 km/h |
Notable Features
- Rough Terrain Capability: High ground clearance and generous departure angles for confident off-road use.
- Automatic Locking Differential: Superior grip and control in challenging surface conditions.
- Oscillating Steer Axle: Adapts to uneven ground, keeping loads level and stable.
- Full Hydraulic Steering: Lightweight, precise, and responsive steering in all environments.
- Operator Comfort: Floating cabin and shock-absorbing seat reduce fatigue and enhance comfort during long shifts.
- Enhanced Cooling System: Efficient heat dissipation protects engine performance under high load or high-temperature conditions.
Applications
These models are built to perform in the most demanding conditions, making them ideal for industries such as:
- Construction
- Agriculture
- Mining
- Forestry
- Outdoor Logistics
For full specifications or to request a quote, visit the official product page here.
